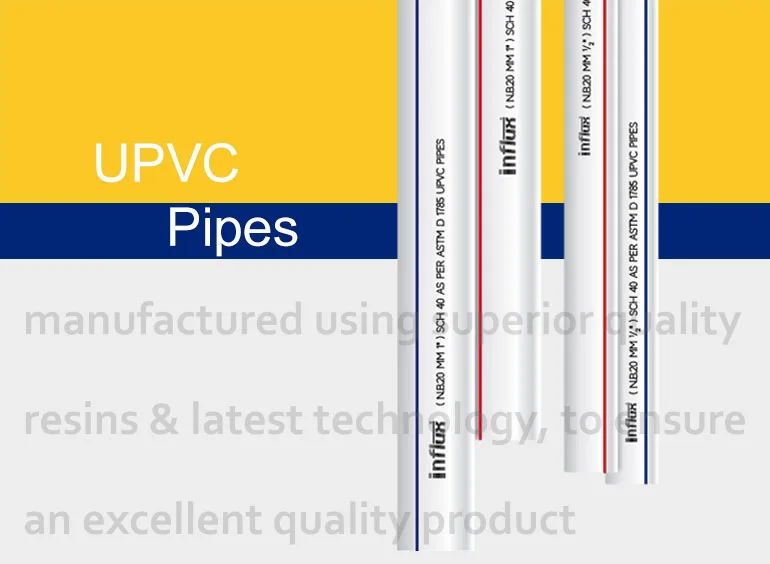

UPVC Pipe Exporter in Gujarat
Shree Group of Companies, Est. in 1999, a reputed group has promoted Shree Poly Plast. We are a famous UPVC Pipe Exporter in Gujarat, India. We offer these things under our brand name Influx® to manufacture this uPVC, cPVC things in a profitable way, we have built up a large and all about sorted out the infrastructural unit.
Dimensional Specifications – ( PVC Schedule 40 )
| Nominal Bore | Mean Outside Diameter in mm | Wall Thickness | Working Pressure at 23° | |||
|---|---|---|---|---|---|---|
| Inch | mm | Minimum | Tolerance | Minimum | Tolerance | Kg/cm2 |
| 1/2 | 15 | 21.34 | +-0.10 | 2.77 | +-0.51 | 41.4 |
| 3/4 | 20 | 26.67 | +-0.10 | 2.87 | +-0.51 | 33.1 |
| 1 | 25 | 33.40 | +-0.13 | 3.38 | +-0.51 | 31.1 |
| 1(1/4) | 32 | 42.16 | +-0.13 | 3.56 | +-0.51 | 25.5 |
| 1(1/2) | 40 | 48.26 | +-0.15 | 3.68 | +-0.51 | 22.8 |
| 2 | 50 | 60.32 | +-0.15 | 3.91 | +-0.51 | 19.3 |
Dimensional Specifications – ( PVC Schedule 80 )
| Nominal Bore | Mean Outside Diameter in mm | Wall Thickness | Working Pressure at 23° | |||
|---|---|---|---|---|---|---|
| Inch | mm | Minimum | Tolerance | Minimum | Tolerance | Kg/cm2 |
| 1/2 | 15 | 21.34 | +-0.10 | 3.73 | +-0.51 | 58.6 |
| 3/4 | 20 | 26.67 | +-0.10 | 3.91 | +-0.51 | 47.6 |
| 1 | 25 | 33.40 | +-0.13 | 4.55 | +-0.51 | 43.4 |
| 1(1/4) | 32 | 42.16 | +-0.13 | 4.85 | +-0.51 | 35.9 |
| 1(1/2) | 40 | 48.26 | +-0.15 | 5.08 | +-0.51 | 32.4 |
| 2 | 50 | 60.32 | +-0.15 | 5.54 | +-0.51 | 27.6 |
Application of UPVC Pipe:
- Building Construction & Portable water supply in a home, apartment, hotels, resorts, hospitals, high and law one building, corporate and commercial house, academic institutes, swimming pools for pure and hygienic water supply.
- Industrial applications in saltwater lines, sugar and paper industries, process line dye plants, chrome, sine, plating, coal washing, and ash handing can be used for many other purposes.
We are also manufacturing UPVC Pipe Fittings.
